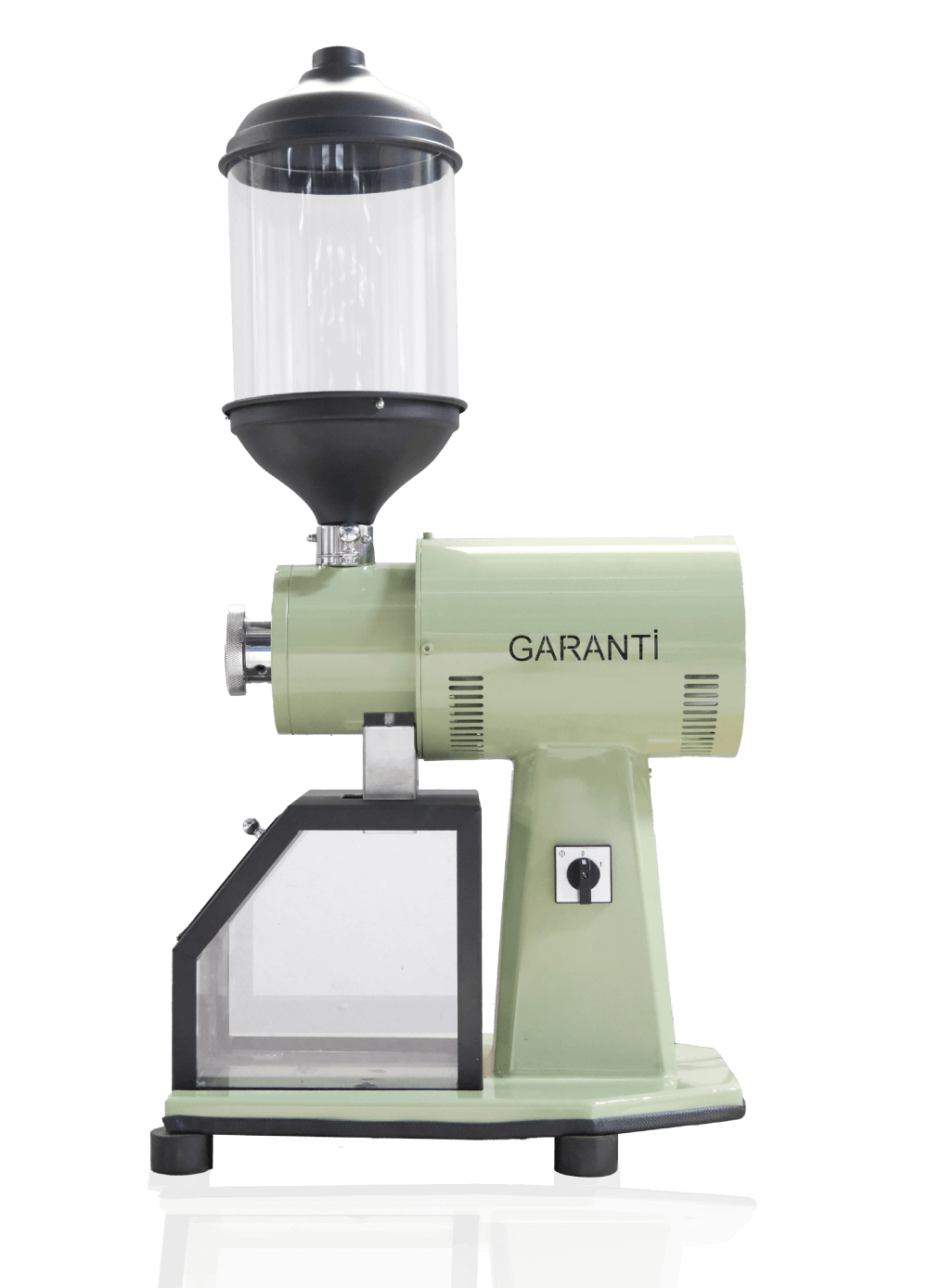

The Ultimo 10 is the most popular and effcient steel disc grinder in our range of shop-focused coffee grinders. It is generally preferred by coffees hops that want to meet the need for grinding small amounts of Turkish coffee with its coffee box. With its 8-stage thickness adjustment, Turkish coffee can be ground in coarse filter coffee thickness. Ultimo 10, suitable for countertop use, can grind your packaged coffees with a grinding capacity of 8kg of Turkish coffee per hour. In addition, it meets the espresso and filter coffee grinding needs of boutique coffee businesses with a capacity of 20kg per hour. You can offer freshly brewed coffee to coffee lovers and add a ground coffee option to your bean package sales.
- Hopper capacity (kg)
- 5
- Filter coffee capacity (kg/h)
- 20
ULTIMO 10 technical data
- Humid resistant cast steel burrs
- Yes
- Shop size use
- Yes
- Filter and espresso use
- Yes
- Turkish fine coffee use
- Yes
- Bag Holder
- No
- Coffee Box
- Yes
- Hopper Cap (kg)
- 5
- Filter Coffee Cap(kg/h)
- 20
- Espresso capacity
- 15 kg/h
- Turkish coffee capacity
- 8 kg/h
- Burr diameter
- 10 cm
- Grind adjustment
- 8 levels
- Power supply
- 220–230 V single-phase
- Supply frequency
- 50/60 Hz
- Motor power
- 1 HP
- Motor speed
- 1450 rpm
- Circuit protection
- 16 A single-phase
- Dimensions (W × D × H)
- 335 × 481 × 777 mm
- Net weight
- 45 kg
- Shipping dimensions (D × W × H)
- 370 × 520 × 910 mm
- Shipping weight
- 55 kg
- Listed electrical input
- 1.1 kW
- Ground product output
- Tray
- Target product
- Roasted coffee beans and dry whole spices
- Standard colours
- Red or black
Compare ULTIMO 10 with the other models in this table4 models
Swipe the table sideways to compare models.
Details – All in One table
| Specification | PRIMERO | ULTIMO 8 | ULTIMO 10 | ULTIMO 15 |
|---|---|---|---|---|
| Humid resistant cast steel burrs | Yes | Yes | Yes | Yes |
| Shop size use | Yes | Yes | Yes | Yes |
| Filter and espresso use | Yes | Yes | Yes | Yes |
| Turkish fine coffee use | Not listed for this configuration | No | Yes | Yes |
| Bag Holder | Yes | Yes | No | Yes |
| Coffee Box | No | No | Yes | Yes |
| Hopper Cap (kg) | 4 | 3 | 5 | 8 |
| Filter Coffee Cap(kg/h) | 18 | 8 | 20 | 50 |
| Espresso capacity | 15 kg/h | 3 kg/h | 15 kg/h | 50 kg/h |
| Turkish coffee capacity | Not listed | Not suitable | 8 kg/h | 20 kg/h |
| Burr diameter | 10 cm | 8 cm | 10 cm | 15 cm |
| Grind adjustment | 10-stage adjustment | 8 levels | 8 levels | 8 levels |
| Power supply | 220–230 V single-phase | 220–230 V single-phase | 220–230 V single-phase | 220–230 V single-phase or 380 V three-phase |
| Supply frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Motor power | 1 HP | 1 HP | 1 HP | 1.5 HP |
| Motor speed | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm |
| Circuit protection | 16 A single-phase | 16 A single-phase | 16 A single-phase | 16 A single-phase / 32 A three-phase |
| Dimensions (W × D × H) | 420 × 270 × 750 mm | 240 × 430 × 830 mm | 335 × 481 × 777 mm | 380 × 645 × 960 mm |
| Net weight | 45 kg | 30 kg | 45 kg | 65 kg |
| Shipping dimensions (D × W × H) | 370 × 480 × 450 mm | 280 × 450 × 850 mm | 370 × 520 × 910 mm | 420 × 680 × 1080 mm |
| Shipping weight | 55 kg | 40 kg | 55 kg | 90 kg |
| Listed electrical input | 1.1 kW | 0.75 kW | 1.1 kW | 2.2 kW |
| Ground product output | Bag holder | Bag holder | Tray | Tray + bag holder |
| Target product | Roasted coffee beans | Roasted coffee beans and dry whole spices | Roasted coffee beans and dry whole spices | Roasted coffee beans and dry whole spices |
| Standard colours | Red or black | Red or black | Red or black | Red or black |
ULTIMO values follow the Rev01 operator manual; net and shipping weights follow the model-specific references. PRIMERO uses the confirmed technical-file dimensions; its hopper capacity (4 kg) and net weight (45 kg) are confirmed by GARANTİ. Capacities depend on the coffee and grind setting. Shipping sizes describe the packed configuration; confirm final packaging and electrical supply with your order.
