Coffee roasters · Atlantica series
ATLANTICA 120
Industrial coffee roaster · 80–120 kg green coffee per batch
Direct heating with a premix burner. Roast and cool simultaneously.
- Model code
- GKPX120
- Batch (green coffee)
- 80–120 kg
- Roasting time
- 15–22 minindicative, profile-dependent
- Heating
- Direct, premix burner
- Versions
- Basic No7 · Auto No8
Inside the ATLANTICA 120

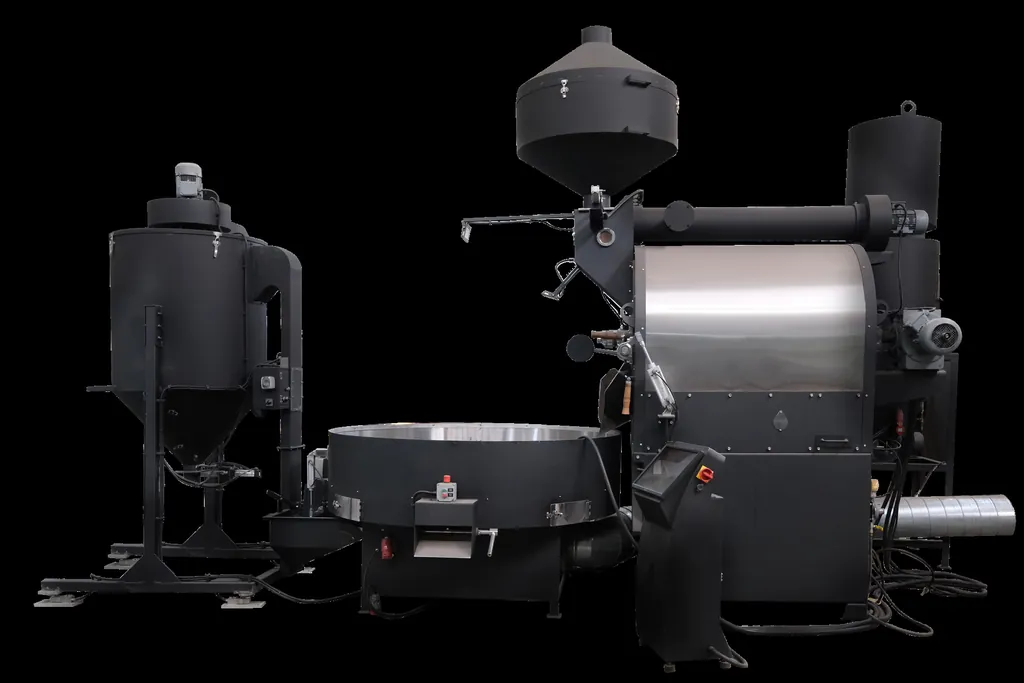

ATLANTICA 120 Auto (No.8) version shown with destoner. Destoner, loader and other auxiliary units are optional or project scope.

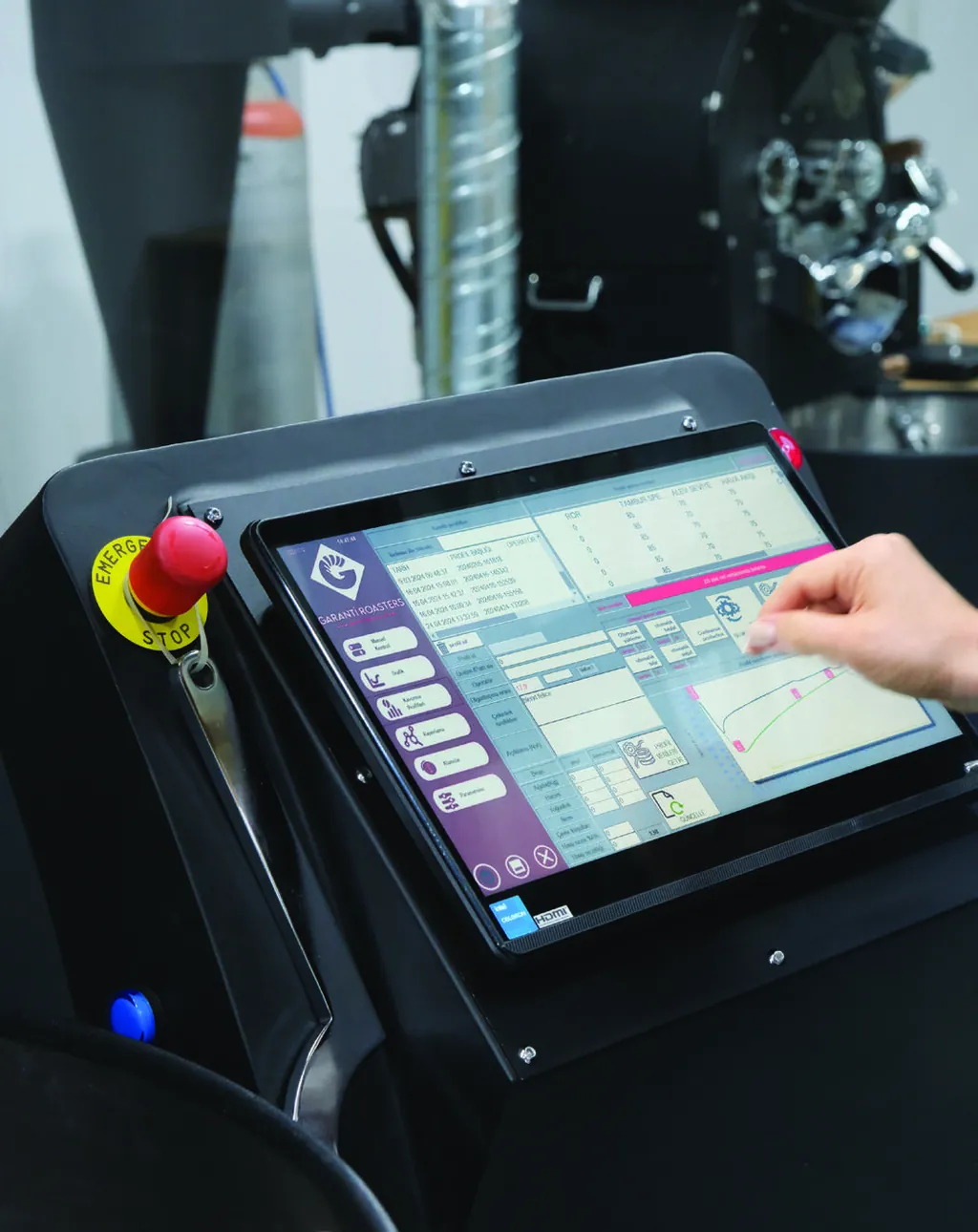

Touchscreen control panel (add-on)

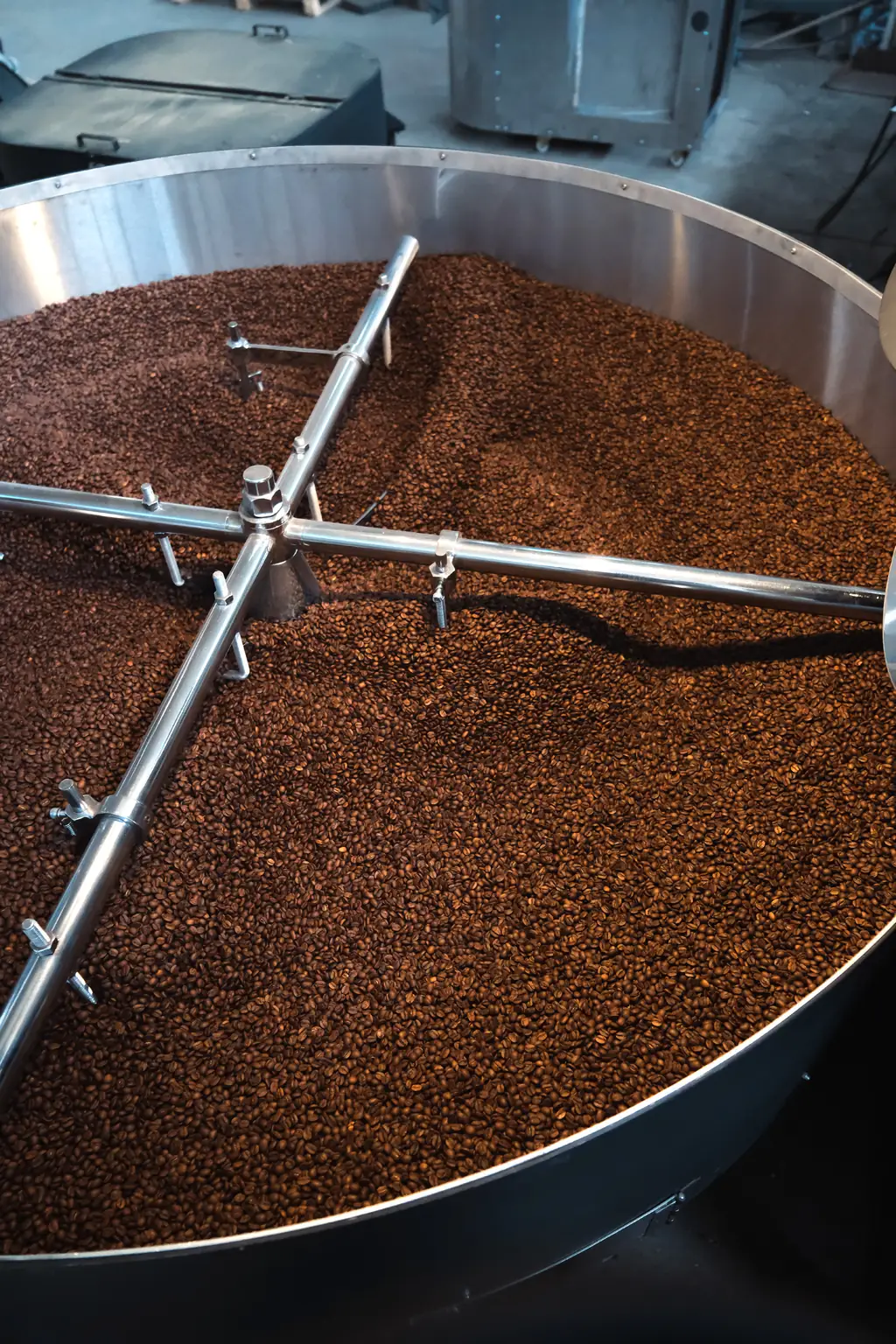

Cooling tray with mixer arms

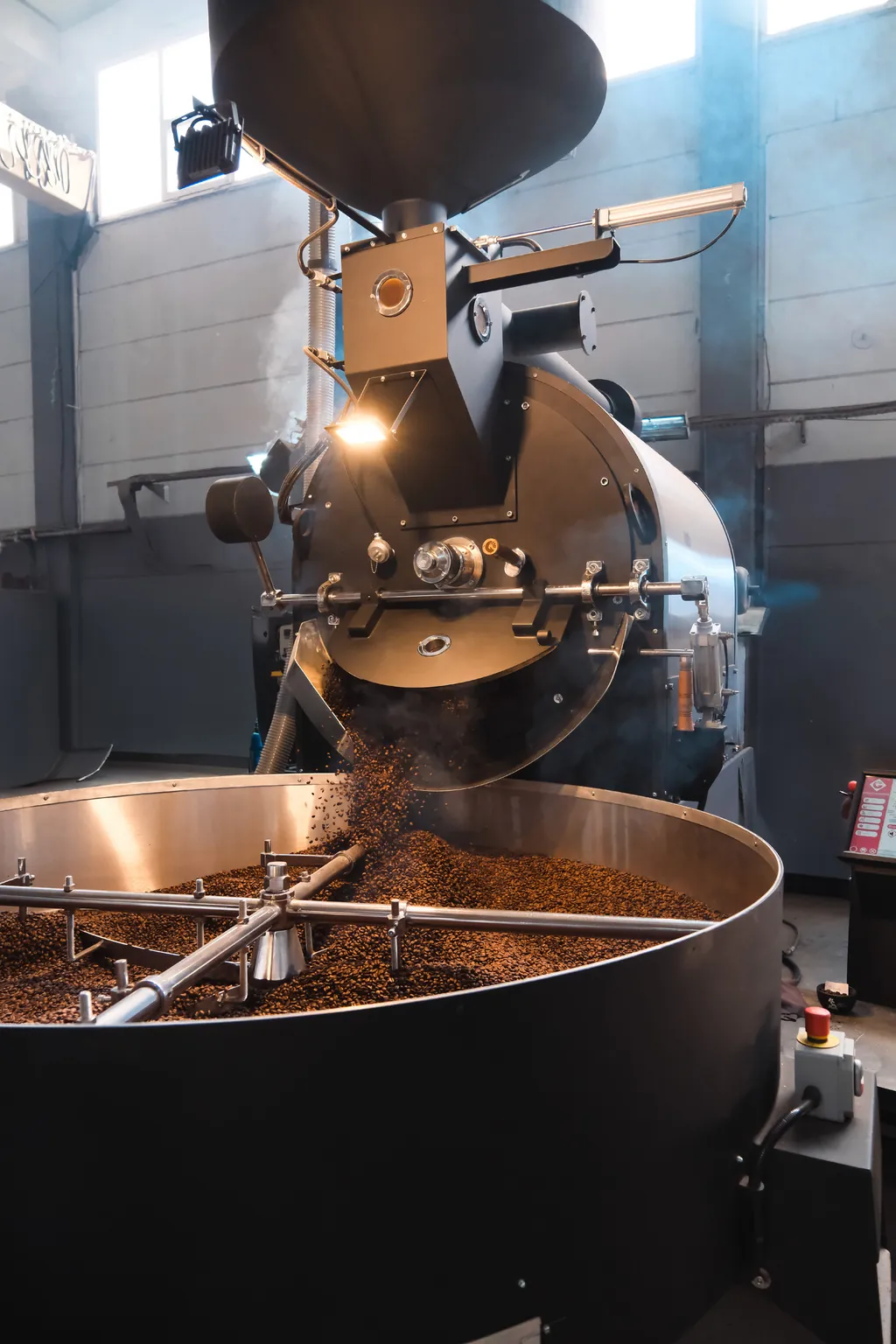

Discharging into the cooling tray

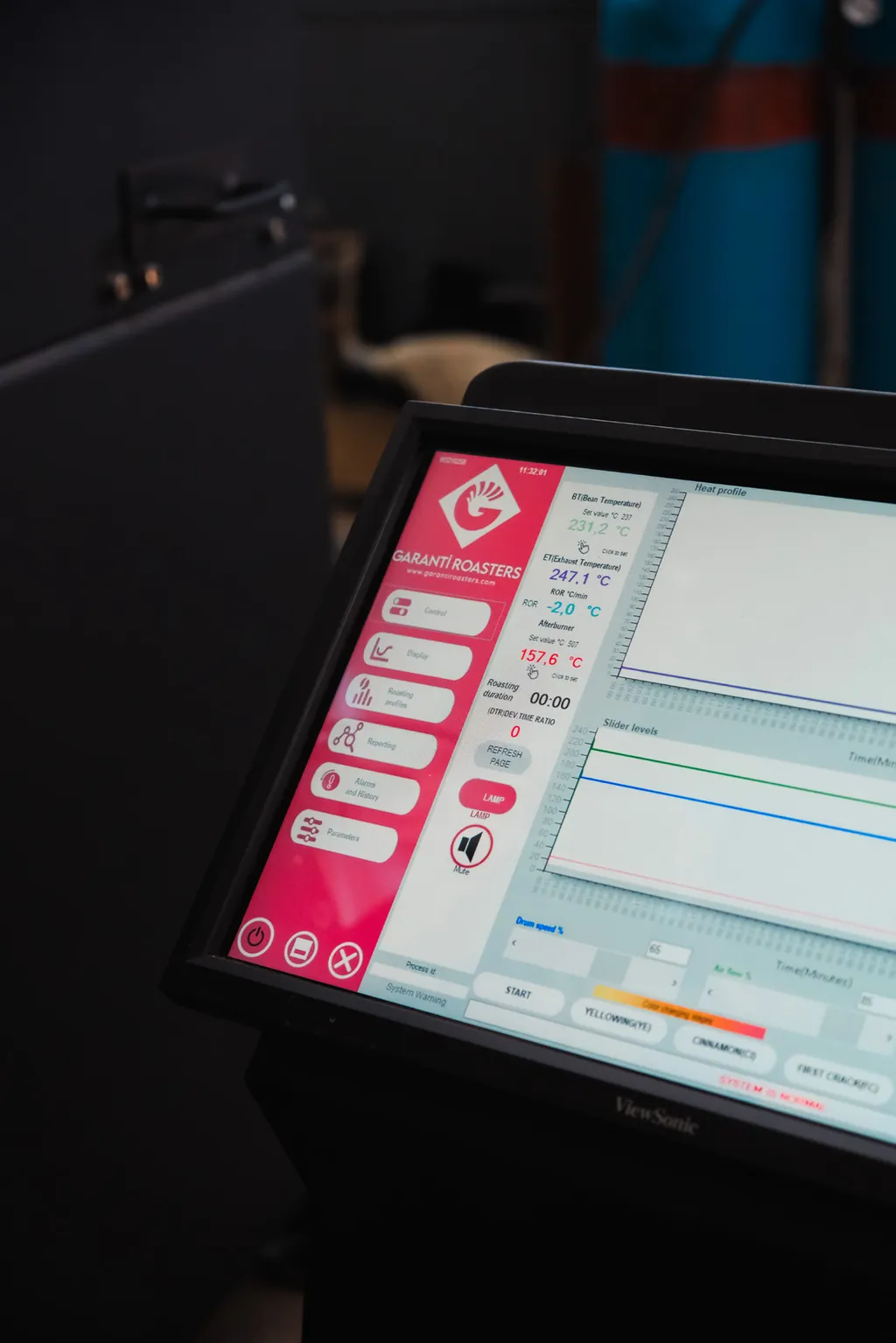

MYGR profile roasting software (add-on)

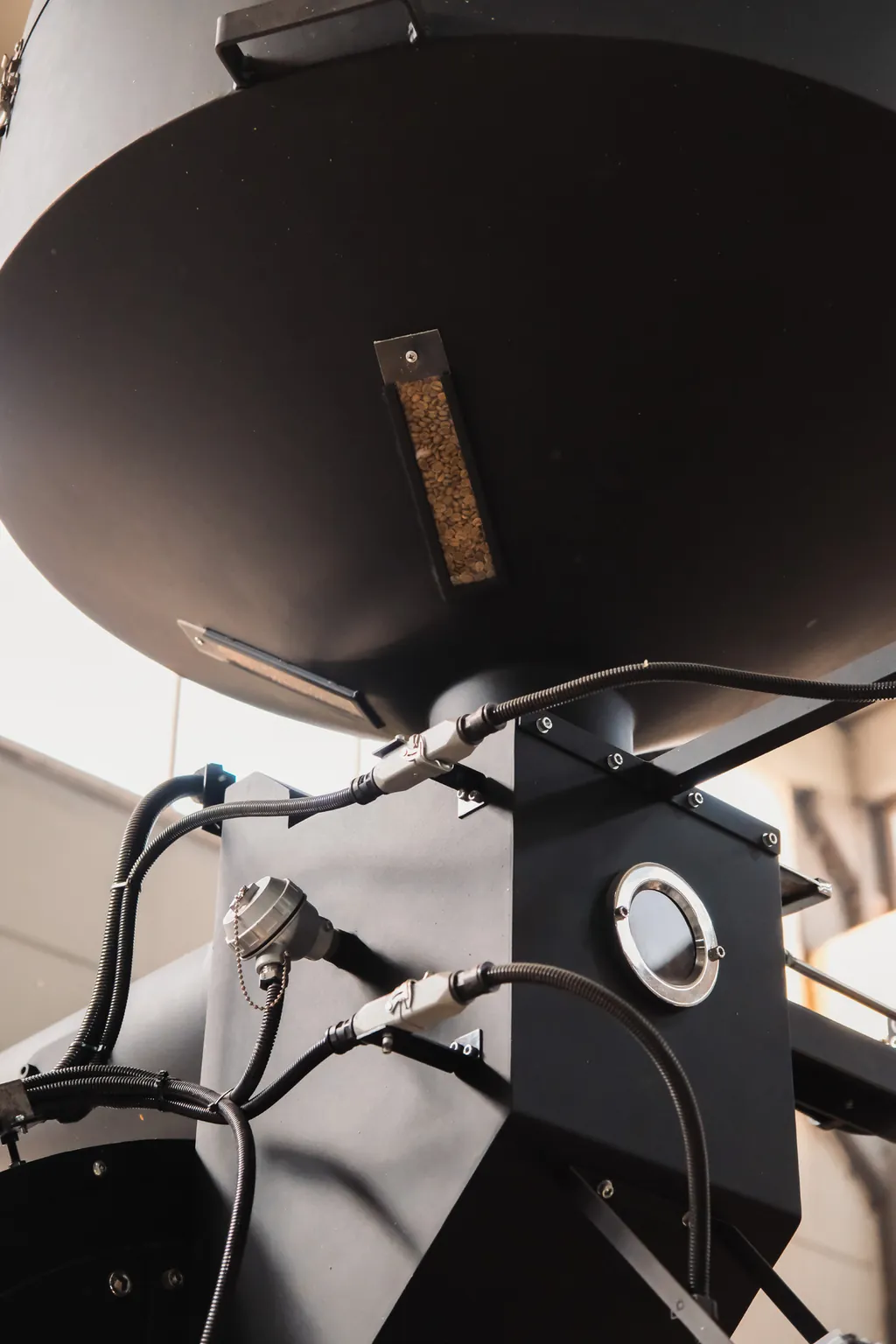

Green coffee hopper with sight glass
Technical data
Catalog reference values. Your proposal and project drawing confirm the configuration for your site.
| Batch capacity | 80–120 kg green coffee |
|---|---|
| Roasting time | 15–22 min, depending on roast profile |
| Heating system | Directly heated, premix burner |
| Drum | Double wall |
| Roasting and cooling | Run simultaneously |
| Burner power | 250–320 kW |
|---|---|
| Fuel | Natural gas or LPG configurationFuel is specified with the order; it is not switched on site without reconfiguration. |
| Electrical reference | 380 V · 32 A · 11 kWCatalog reference; final connected load depends on the configured package. |
| Controls | Drum speed, fan speed, burner level and ignition |
| Sensors | Bean and exhaust temperature (BT / ET), Pt100 3 mm |
| Space planning | 45 m² reference areaPlanning reference for the roasting area, not the machine footprint. Exact layout, height and clearances are defined in your project drawing. |
|---|
| Light roast | 480 kg/h |
|---|---|
| Medium roast | 430 kg/h |
| Dark roast | 360 kg/h |
Gross green coffee input per hour from the catalog. Roasted output is lower because of roast loss; we confirm expected output for your profile and schedule in the proposal. Not a guaranteed throughput.
Versions, controls and project scope5 rows
| Versions | Basic No7 · Auto No8Your proposal lists the version and add-ons for your production. |
|---|---|
| Standard controls | Motor control for drum, exhaust fan, cooling mixer and cooling fan; drum speed and airflow regulators; burner flame level; ignition; gas regulator; Pt100 3 mm bean and exhaust temperature sensors (BT / ET). |
| Standard | Roaster with directly heated premix burner, double-wall drum and cooling tray. Roasting and cooling run simultaneously. |
| Optional | Green coffee loader with weighing system (OP_6) and the add-ons below, specified per project. |
| Project scope | Destoner, afterburner and storage, selected for your site and local requirements. |
Add-ons7 options
Installation We plan the installation with you: production schedule, utilities (gas type, electrical supply), floor plan with clearance and ceiling height, exhaust route and delivery access. Local permits and emission rules depend on your location; we review them for your project.
Source: ATLANTICA 120 catalog, ED.01 | 2026 | 01 · Catalog PDF, 2.6 MB.
Questions about the ATLANTICA 120
Is 120 kg the roasted output?
No. 80–120 kg is the green coffee batch. Roasted weight is lower because of roast loss, which depends on the roast degree. We confirm expected output for your profile in the proposal.
Natural gas or LPG?
Both configurations are available. The fuel is specified with your order, so please tell us which gas is available at your site.
What happens after I request a quote?
We review your request, define the configuration with you and send a technical and commercial proposal for your project.
